CB-E**S* Bidirectional Gear Pumps
CB-E**S* Bidirectional Gear Pumps
General Description
CB-E**S* Bidirectional Gear Pump has a low displacement. It con?sists of a gear pair supported by bearing blocks, a housing, a flange and a rear cover. Equipped with two check valves in the rear cover, the pump can work in both cw and ccw direction. It is suitable for small bidirectional hydraulic systems.
Order Code

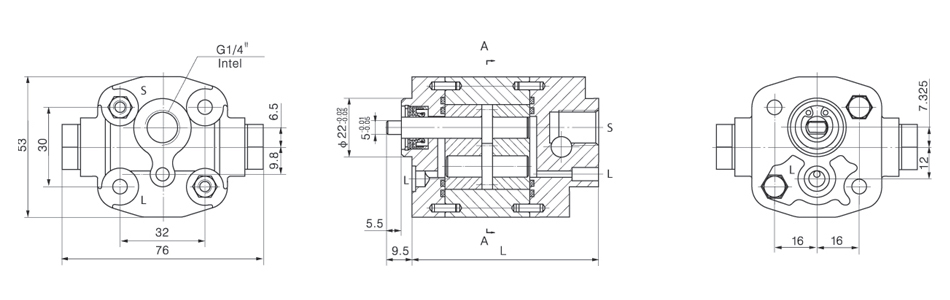

Outline Dimension
CB-E*S
CB-E*BS
Shaft Option
Technical Data
| Model |
Displacement (mL/r) |
pressure (MPa) | Speed (RPM) |
Displacement |
Efficiency | ||
| P1 | P2 | P3 | L(mm) | ||||
| CB-E0.26*S* | 0.27 | 16 | 18 | 20 | 3000 | 68.7 |
80% |
| CB-E0.32*S* | 0.33 | 69.2 | |||||
| CB-E0.38*S* | 0.39 | 69.6 |
82% | ||||
| CB-E0.50*S* | 0.49 | 70.5 | |||||
| CB-E0.60*S* | 0.61 | 71.5 |
85% | ||||
| CB-E0.63*S* | 0.64 | 71.7 | |||||
| CB-E0.75*S* | 0.76 | 72.7 | |||||
| CB-E0.88*S* | 0.88 | 73.7 | |||||
| CB-E1.00*S* | 1.00 | 74.7 | |||||
| CB-E1.25*S* | 1.25 | 76.7 | |||||
| CB-E1.50*S* | 1.54 | 79 | |||||
